Vessel Construction
Cutter Suction Dredge Construction
C&C Marine and Repair is the builder of the 4 largest cutter suction dredges in the United States. Our purpose-built CSDs deliver industry-leading production rates with patent-pending interchangeable dredge head technology.
America's CSD Builder
Builder of the 4 Largest CSDs in the USA
C&C Marine has established itself as the nation's premier builder of large cutter suction dredges, delivering the most powerful and productive CSDs operating on American waterways.
From the 23,269 HP J.S. Chatry to the 24,000 HP General Arnold, C&C Marine has built a fleet of CSDs that set the standard for dredging performance in the United States. Each dredge is custom-engineered at our Belle Chasse, Louisiana shipyard with integrated onsite engineering, indoor construction bays, and automated panel lines for consistent quality.
Our experience building the largest and most complex dredges in the country means we understand the unique challenges of dredge construction — from massive hull structures and heavy machinery installations to complex piping systems and electrical integration.
Our Dredges
Cutter Suction Dredges Built by C&C Marine
Every CSD we build pushes the boundaries of size, power, and production capability. Explore the dredges that have made C&C Marine the leading CSD builder in the United States.

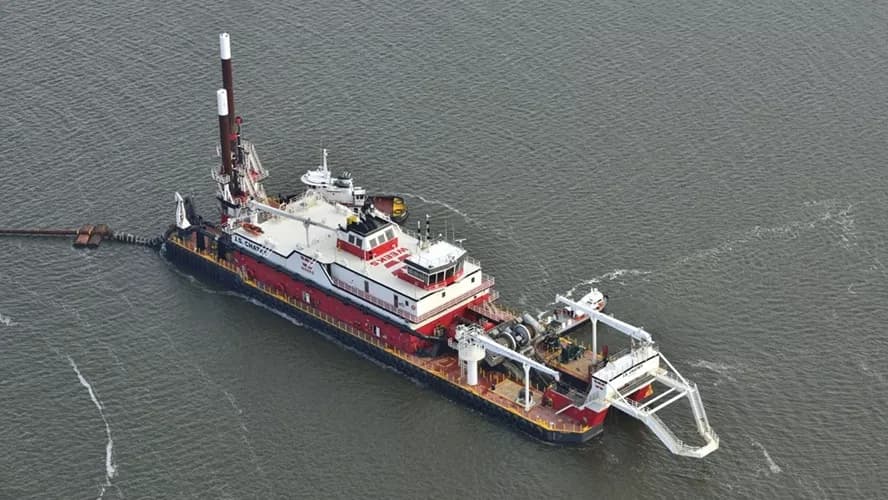

J.S. Chatry
The J.S. Chatry was the first of the new generation of large cutter suction dredges built by C&C Marine for Weeks Marine. At the time of delivery, it was one of the largest and most powerful CSDs operating in the United States.
Specifications
| Dimensions | 310' x 72' x 17' |
| Suction Diameter | 30" |
| Main Engines | GE Tier 4 |
| Total Horsepower | 23,269 HP |
| Classification | ABS A1 |

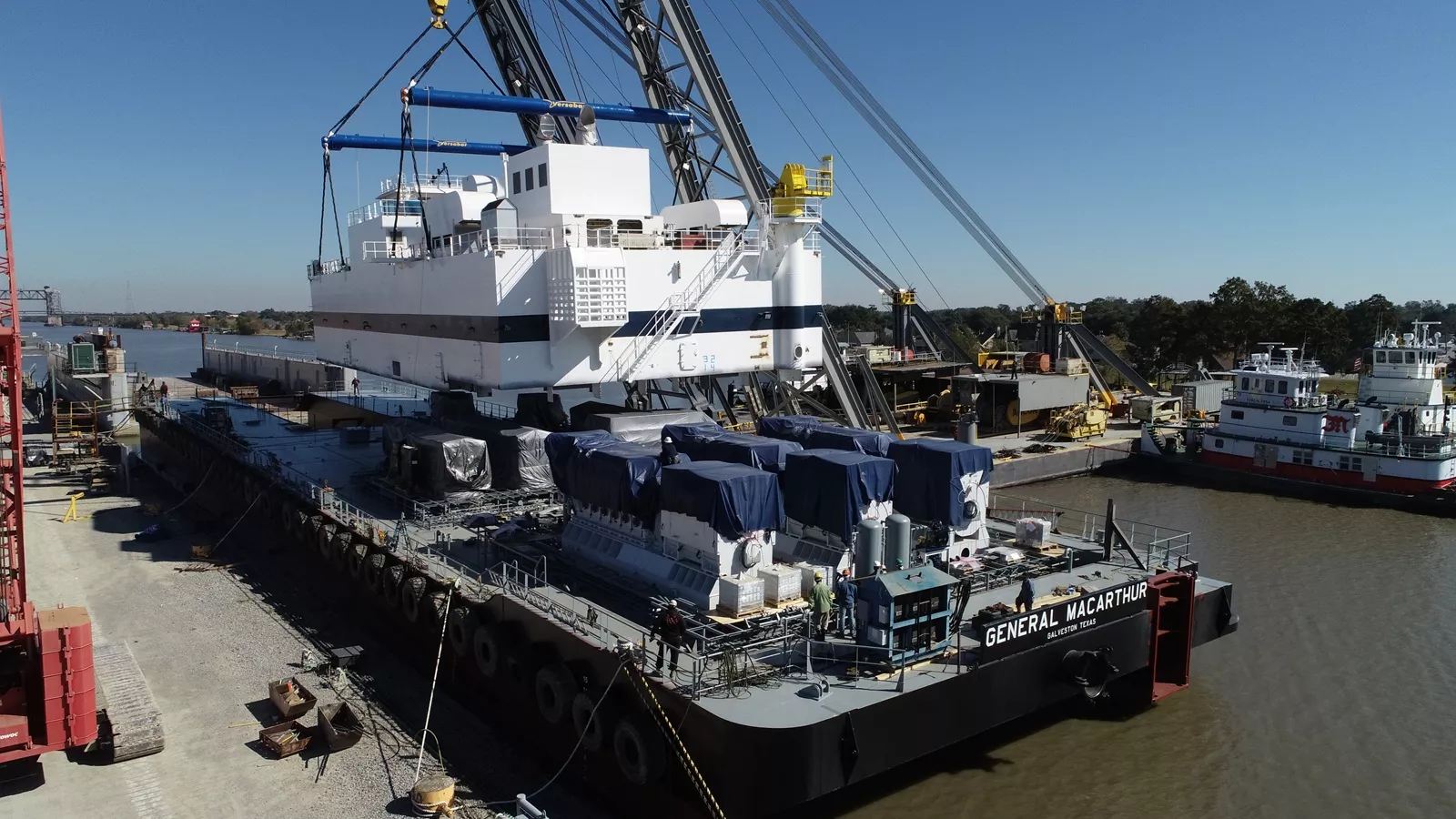

General MacArthur
Built for Callan Marine, the General MacArthur pushed the boundaries of CSD design with a 34-inch suction diameter — the largest in the C&C dredge fleet. Powered by Cat-MAK Tier 3 engines delivering 24,000 HP, this dredge is built for high-production dredging operations.
Specifications
| Dimensions | 290' x 72' x 16' |
| Suction Diameter | 34" |
| Main Engines | Cat-MAK Tier 3 |
| Total Horsepower | 24,000 HP |
| Classification | ABS A1 |

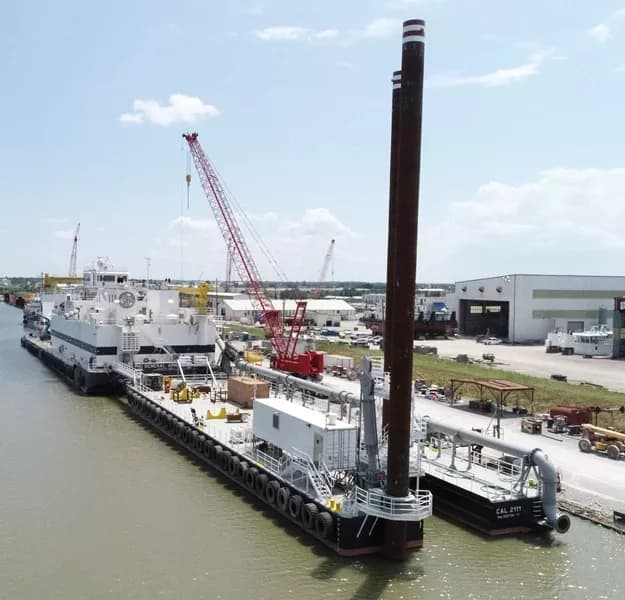

General Arnold
The General Arnold is the newest CSD delivered by C&C Marine, built for Callan Marine with next-generation Wabtec Tier 4 engines. This 24,000 HP dredge features the latest in emissions-compliant propulsion technology while maintaining maximum dredging production.
Specifications
| Dimensions | 290' x 72' x 16' |
| Suction Diameter | 32" |
| Main Engines | Wabtec Tier 4 |
| Total Horsepower | 24,000 HP |
| Classification | ABS A1 |

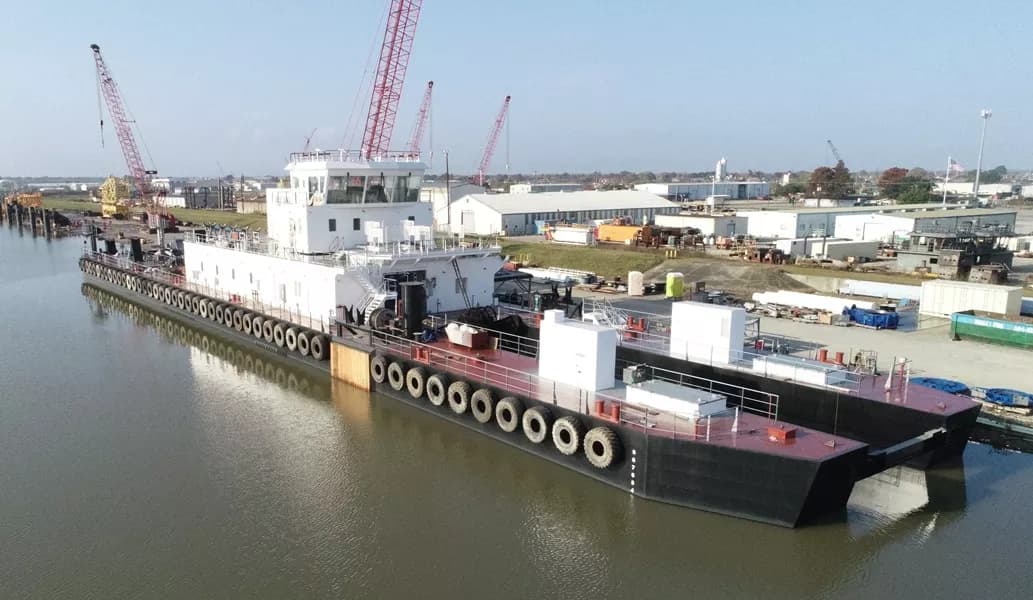

30" CSD — Available for Purchase
C&C Marine is currently constructing a 30-inch cutter suction dredge on speculation, available for purchase. This diesel-electric CSD features a modern design optimized for efficiency and operational flexibility, making it an ideal turnkey solution for dredging operators looking to expand their fleet.
Specifications
| Dimensions | 360' x 56' x 12' |
| Suction Diameter | 30" |
| Propulsion | Diesel-Electric |
| Total Horsepower | 11,485 HP |
| Availability | Q2 2026 |
Patent Pending
Interchangeable Dredge Heads
C&C Marine has developed a patent-pending interchangeable dredge head system that converts a cutter suction dredge into a dustpan dredge — and back — by simply swapping the head.
This innovation gives dredge operators unprecedented mission flexibility from a single asset. Use the cutterhead for hard materials like rock, clay, and compacted sediment, then swap to the dustpan head for soft sediment and sand — all without returning to the shipyard.
The result is significant cost savings: one dredge that can handle multiple mission profiles, reducing the need to mobilize separate vessels for different material types.

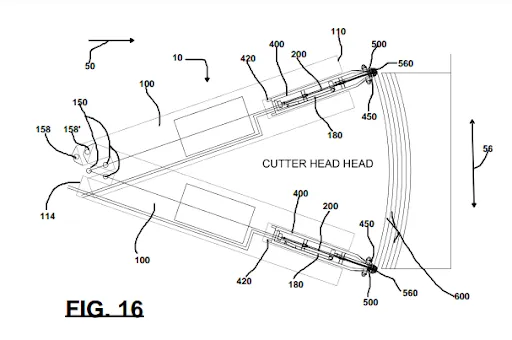

Cutter Head Configuration

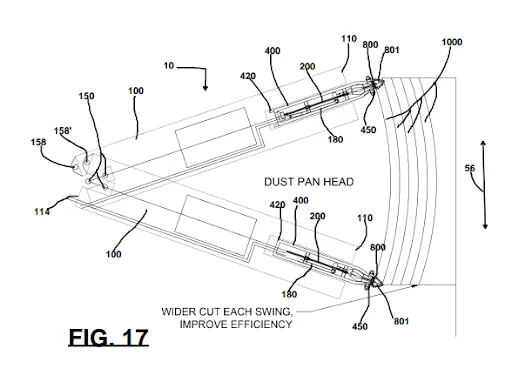

Dust Pan Head Configuration
Capabilities
Why Build Your Dredge with C&C
Our facilities, engineering expertise, and commitment to on-time delivery make C&C Marine the right choice for your dredge construction project.
Integrated Engineering
Our onsite engineers work directly with clients to optimize dredge designs for specific operating conditions, soil types, and production requirements.
Indoor Construction
Dredge hulls and components are built indoors with overhead cranes, eliminating weather delays and ensuring consistent quality year-round.
On-Time Delivery
Our efficient production processes and indoor facilities ensure dredge vessels are delivered on schedule, getting your equipment to work faster.
ABS & USCG Certified
All dredge vessels are built to meet or exceed ABS classification and USCG inspection requirements, with certified welders and quality assurance programs.
Ready to Build a Dredge?
From the most powerful CSDs in the country to our patent-pending interchangeable dredge heads, C&C Marine delivers dredging solutions that set the industry standard. Contact us to discuss your project.
